About Changsha Tianhe Drilling---

Manufacturer---rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
Experience--in this field of DTH hammers and bits for 20 years.

Export countries---our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

1.DTH Bit specification

2.DTh Bit Shank can be available:

1), Dia. 64mm-70mm shank Bulroc BR1
2), Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3), Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 500mm-700mm shank SD18 TH18 NUMA180

11) Dia. 600mm-800mm shank TH24 NUMA240

12) Dia. 800mm-1000mm shank TH28

3.Bit Face Shape Selection:

1)Drop Center Bit

----For high penetration rates in soft to medium hard and fissured rock formations.

2)Concave Face

----The all-around application bit face specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.

3)Convex Face

----For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce theload and wear on the gauge buttons, but poor hole deviation control.

4)Flat Face Bit

----This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

4.Carbide Button Shape Selection:

1. Semi-Ballistic Buttons

2. Ballistic Button

3. Spherical Button

4. Two-step Button

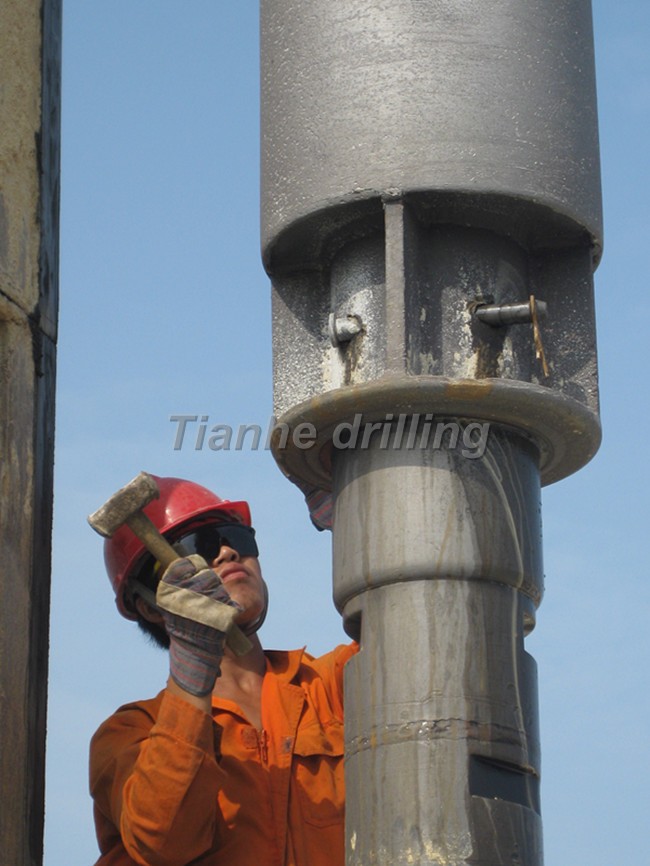

5.Photos:

Changsha Tianhe Drilling Tools and Machinery Co., Ltd., is a professional geotechnical drilling tools manufacturer since 2002. We’re located in Jinzhou New District,Ningxiang County, Changsha,Hunan province.Our main products include DTH (down-the-hole) hammers and bits with capacity of drilling holes from 64mm--1020mm in diameter, DTH drilling tools with large diameter for deep hole drilling, eccentric casing system (ODEX) and concentric casing system, reserve circulation hammers and bits, drilling rig, rock drilling accessories and other relative equipment. They are widely used in mining,water well and geothermal drilling, anchoring, foundation and infrastructure, piling,tunneling and other construction and geotechnical engineering. They are exported to Sweden,Swiss,Finland,Italy, France, Germany, Australia,South Korea,South Africa,Chile, Brazi and other 30 countries.Teamwhole is proved to be the right choice by more than 1000 customers all over the world.

Our registered capital is 6.5 million USD, and monthly capacity is about 1000 sets of hammers. We have about 300 employees,among them there are 80 specialized technicians,30 of them have over 20 years working experiences in DTH drilling tools research and development. We have the ISO9001:2008 certificate,over 30 technical patents, and 3 registered trademarks.We’re a council unit of China Drilling Steel and Drilling Tools Association,the director unit of China Heat Treatment Association, the well-known trademark enterprise of Hunan Province, the high-tech enterprise of Hunan Province, the geotechnical drilling equipment engineering of Changsha City Technology research center and enterprise technology center.

The company always guide themselves with the service concept "focus on users' requirements and meet to customers" needs " , flexibly apply the unique technology, strictly comply with the standards of ISO9001 quality system, professionally commit to research, development and application, and sincerely produce the rock drilling tools with most specifications, easy operation, reliable quality and good prices for all the global users. With strong technical strength, we are making efforts to creat the best brand of Chinese drilling tools, and to be the top manufacturer in the world.
