| Brand Name : | Teamwhole |
| Model Number : | DTH drill pipe |
| Certification : | ISO9001 |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 50000 Piece/Pieces per Month dth drill pipe |
| Delivery Time : | Shipped in 7 days after payment |
| Price : | Negotiation |
DTH drill pipe plays an important role in DHT drilling. The key features of high quality drill tube are durability, accuracy and manageability Bei Fang DTH drill pipes are made of superior alloy and the both thread ends are friction welded to the seamless steel pipe. The high pressure is delivered to DTH hammer by DTH drill pipe, simultaneously it transfer the rotation and pressure force to the DTH hammer. |
Standard DTH pipe: Diameter:60mm,64mm,76mm,89mm,102mm,114mm,127mm,140mm Length: 1000mm, 1500mm, 2000mm, 3000mm, 5000mm, 6000mm Thread: 2 3/8'' API REG ; 2 7/8'' API REG; 3 1/2'' API REG; 4 1/2'' API REG; 2 3/8'' API IF; 3 1/2'' API IF |
Special DTH drill pipe: The drill pipe for Atlas Copco--Ingersol Rand T4 ,Schramm T64 ,Atlas Copco F6, L6 and L8 ,and the drill pipe for Sandvik Driltech D25/D40K. |
DTH drill rods are processed with well heat-treated, precision manufactured, and friction-welded.
 | Diameter |
| 60~89mm | |
| 102~108mm | |
| 114~152mm | |
| Length |  |
| 1000~7620mm | |
| 1000~9140mm | |
| 1000~10670mm | |
 | Connection Thread |
| T42*10*2 | |
2 3/8” API REG/IF 2 7/8” API IF | |
3 1/2” API REG |
PRODUCT SPECIFICATION
DTH Drill Rods:

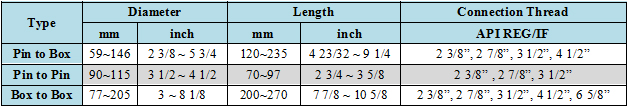

Sub Adapters:
|
|
|
