Gold DHD360 DTH hammer of DTH drilling tools for waterwell drilling.

Application Range

It is widely applied to all kinds of rock drilling and excellent for casing systems and water well projects.

Design Principles
To pursuit smooth operation and reliability.

Outstanding Advantages
The simple structure ensures the easy operation and maintenance. The good seal effect eliminates the problem caused by water and flushing entering into the inner cylinder of hammer. They also have the features of large

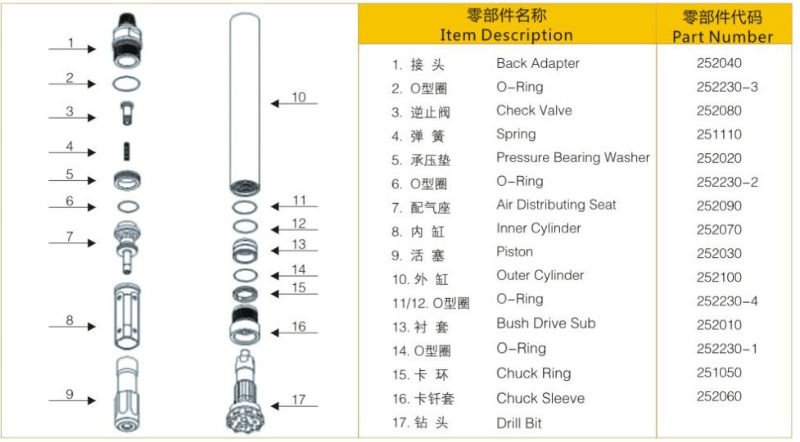

1.Structure and Technical Parameters

1. BACK ADAPTOR 2.O-RING 3.CHECK VALVE 4 SPRING 5 PRESSURE BEARING WASHER

6. O-RING 7.AIR DISTRIBUTING SEAT 8 INNER CYLINDER 9 PISTON 10 OUTER CYLINDER

11/12 O-RING 13 BUSH DRIVE SUB 14 O-RING 15CHUCK RING 16 CHUCK SLEEVE 17 DRILL BIT
