Technical Parameters

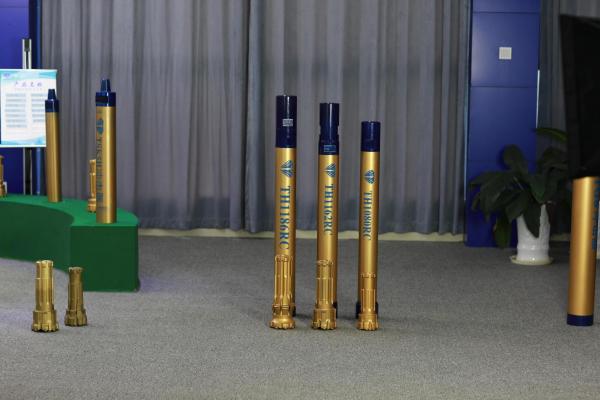

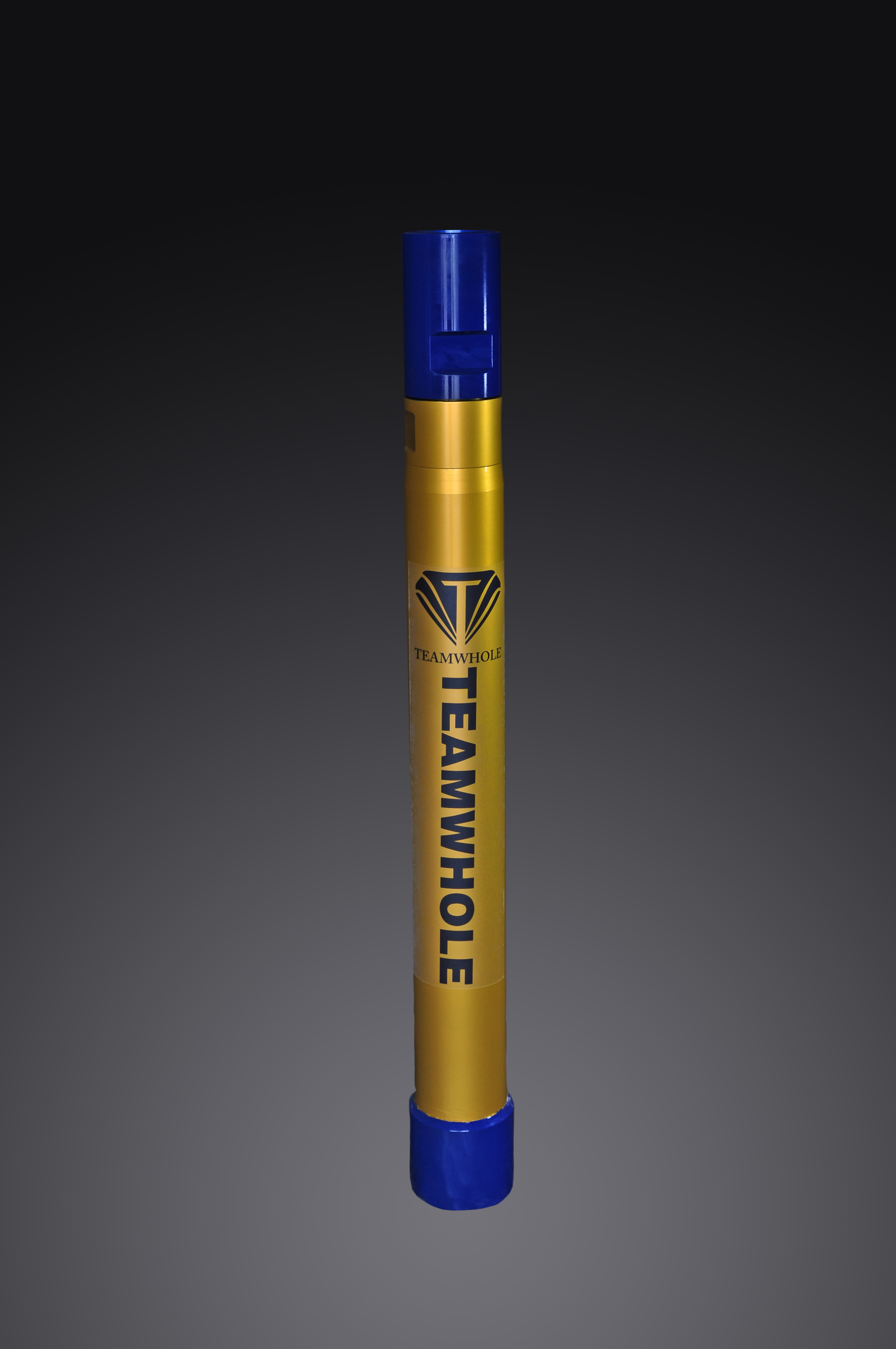

RC hammer:the exhaust air,and cuttings are discharge through the center return hole of the RC

hammer,and the exhaust air is not discharged into the ground,It creates excellent up-hole velocity,which ensure cuttings are quickly removed from the bit face providing an extremely clean hole and excellent life time on the bit.

1.Main specifications:

TH1162RC--- RE543

TH1214RC--- RE040

TH1261RC--- RE052

TH1305RC--- RE054

TH1307RC--- RE140

2.Application range: Geological exploration, ore mining.

3.Design Principles: To arrive at target depth exactly and improve the productive efficiency with low cost, durable using.

4.Outstanding advantages: High impact frequency, fast penetration rate, low air consumption, high crush function, low cost,precise rock sample.

5.Main specifications and parameters:
Hammer Bit range.mm Cylinder O.D Working pressure
TH1162 121-133 116mm 250-500
TH1214 127-137 121mm 250-500
TH1261 133-143 126mm 250-500
TH1305 137-146 130mm 250-500
TH1307 137-146 130mm 250-500

How to complete the whole deal

Step:

1. Firstly decide the design, material and color

2. Decide the size in accordance with client's requirement and our

recommendation

3. We will give the best offer.

4. Client's accept the offer and we send proforma invoice.

5. Client transfers 30%-50% deposit and production begins

6. After production, we will send ready products photo

7. After client's confirmation, we will arrange shipment, and send

copy shipping documents like B/L, commercial invoice and

packing list

8. Client transfer balance payment and we will send original

documents by DHL or EMS

Pictures

Changsha Tianhe Drilling Tools and Machinery Co., Ltd., is a professional geotechnical drilling tools manufacturer since 2002. We’re located in Jinzhou New District,Ningxiang County, Changsha,Hunan province.Our main products include DTH (down-the-hole) hammers and bits with capacity of drilling holes from 64mm--1020mm in diameter, DTH drilling tools with large diameter for deep hole drilling, eccentric casing system (ODEX) and concentric casing system, reserve circulation hammers and bits, drilling rig, rock drilling accessories and other relative equipment. They are widely used in mining,water well and geothermal drilling, anchoring, foundation and infrastructure, piling,tunneling and other construction and geotechnical engineering. They are exported to Sweden,Swiss,Finland,Italy, France, Germany, Australia,South Korea,South Africa,Chile, Brazi and other 30 countries.Teamwhole is proved to be the right choice by more than 1000 customers all over the world.

Our registered capital is 6.5 million USD, and monthly capacity is about 1000 sets of hammers. We have about 300 employees,among them there are 80 specialized technicians,30 of them have over 20 years working experiences in DTH drilling tools research and development. We have the ISO9001:2008 certificate,over 30 technical patents, and 3 registered trademarks.We’re a council unit of China Drilling Steel and Drilling Tools Association,the director unit of China Heat Treatment Association, the well-known trademark enterprise of Hunan Province, the high-tech enterprise of Hunan Province, the geotechnical drilling equipment engineering of Changsha City Technology research center and enterprise technology center.

The company always guide themselves with the service concept "focus on users' requirements and meet to customers" needs " , flexibly apply the unique technology, strictly comply with the standards of ISO9001 quality system, professionally commit to research, development and application, and sincerely produce the rock drilling tools with most specifications, easy operation, reliable quality and good prices for all the global users. With strong technical strength, we are making efforts to creat the best brand of Chinese drilling tools, and to be the top manufacturer in the world.
